Assists in handling, transport and storage within the logistics chain. Completely smooth internal surfaces, facilitating automated loading/unloading of content. Has a slot to place an identification card (VDA standard 4902 - 210 x 75 mm). Can be sealed when used with lid. Has textured areas for adhesive labels. Allows cross-stacking (3x2) on 1200 x 1000 pallets. Permissible internal weight of up to 20 kg. Permissible load when stacked on each other: up to 600 kg. Enables all movements of the different systems for moving materials.

Applications

Used for the transport of automotive parts and components in general.

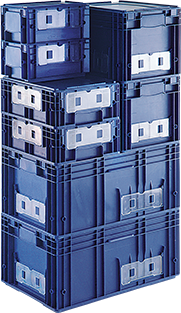

Stacking
147.5 mm / 132.5 mm
External Dimensions
396 x 297 x 147,5
Internal Dimensions
345 x 260 x 129,5 (net inside height)
MATERIAL
PP (polypropylene)
VOLUME
0.0173 m³/unity
Weight
1.080 Kg
CAPACITY
11,8 L

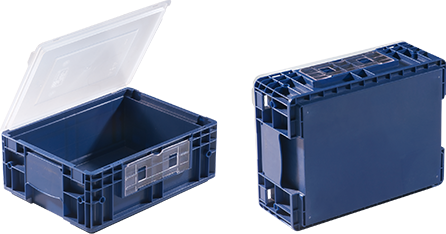

LID
LID 4320-0
LID DETAILS
4320-0 - (weight 0,30 Kg) PP (polypropylene)
LID
LID 4320-0D
LID DETAILS
4320-0D - (weight 0.30 Kg) PP (polypropylene)
MAXIMUM PERMISSIBLE LOAD
20 Kg
COLORS
Blue, Dark Blue, Gray and Black

Features

Stackable SOLID BASE AND WALLS OPTIONAL LID OPTIONAL CARD SLOT SMOOTH BASE
